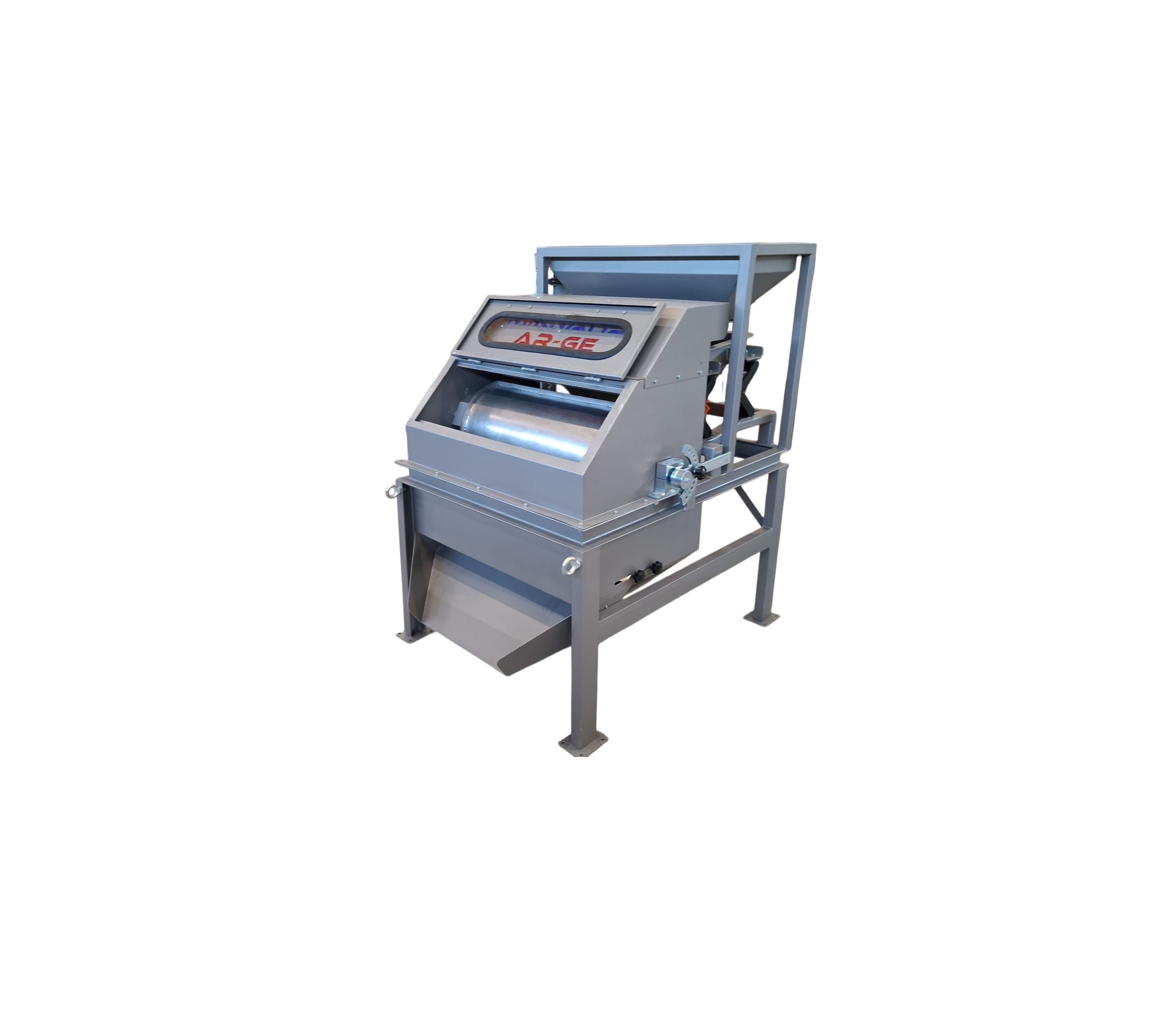

Closed Magnetic Drums: Advanced Solutions for Ferrous Metal Separation

Closed Magnetic Drums offer an indispensable solution for the automatic and efficient separation of ferrous metal contaminants from various product streams. Designed for continuous operation, these robust systems ensure product purity and safeguard downstream processing equipment without requiring complex belt systems or manual intervention.

The core principle behind a closed magnetic drum involves the precise separation of iron particles from the fed product. As material flows over the drum’s surface, a powerful internal magnetic field captures ferromagnetic elements. The unique separator blade then ensures that these magnetic particles are automatically diverted, falling to the back of the drum, while the clean, non-magnetic product continues its path, falling to the front. This design guarantees a contact-free separation process, maintaining the integrity of the product and the efficiency of the separation.

Applications Across Diverse Industries

The versatility of closed magnetic drums makes them suitable for a wide array of industrial applications, particularly where high-capacity, continuous separation of ferromagnetic (Fe) metals is critical. Their ability to handle various material consistencies makes them invaluable in:

• Plastic and Ceramic Industries: Essential for cleaning coarse raw materials such as granules and fibers, preventing damage to molds, extruders, and other sensitive machinery, and ensuring the quality of the final product.
• Grain Processing: Used for cleaning metal wires and other ferrous contaminants from grains like wheat, enhancing food safety and protecting milling equipment.
• Dry Food Production: Crucial for maintaining the purity of products such as sugar, spices, and other dry edibles, preventing foreign object contamination and meeting stringent food safety standards.
• Chemical and Carbon Black Production: Ensures the purity of chemical compounds and carbon black, which is vital for product quality and the integrity of chemical reactions.

Understanding Semi-Magnetic Drum Technology

What sets these systems apart is their innovative “Semi-Magnetic Drum” design. This designation refers to the drum’s internal structure, which houses an angled, adjustable permanent magnet assembly. As the product is fed, typically by pipeline or through a vibration feeder, it flows freely over the drum’s rotating surface. Ferrous contaminants within the product stream are attracted to and cling to the magnetic surface. The angled magnet configuration, combined with the drum’s rotation, allows these captured Fe-containing metals to be carried against the product flow, detaching from the drum at a specific point and falling to the back surface, thereby leaving the clean product stream. This ingenious mechanism facilitates a continuous self-cleaning action, optimizing operational efficiency. Depending on the specific characteristics of the product, various feeding methods are suggested to ensure optimal separation performance.

Magnet Types and Performance Specifications

The effectiveness of magnetic drums largely depends on the type and strength of the magnets employed:

• Ferrite Magnets: For applications requiring the separation of highly magnetic materials like iron filings, nails, and larger ferrous debris, Ferrite magnets are typically sufficient. They provide a strong magnetic field in the range of 1000-1500 Gauss, which is adequate for materials with high magnetic sensitivity.
• Neodymium Magnets: When the task involves separating weakly magnetic particles, or very fine ferrous dust, Neodymium magnets are the preferred choice. These powerful rare-earth magnets offer significantly higher magnetic flux density, allowing for the capture of even minute contaminants. The magnetic flux density (B) measured on the stainless armor surface can be precisely manufactured to various levels, including:
  • 2000-2500 Gauss
  • 3000-3500 Gauss
  • 4000-4500 Gauss
  • 6000-7000 Gauss

  The selection of the appropriate Gauss value is critical and is determined by several factors, including the particle size of the product being processed, the magnetic sensitivity of the specific metal contaminants, and the desired level of purity in the final product. Our experts recommend the optimal magnetic strength based on these characteristics.

Hygienic Design for Sensitive Environments

For industries with stringent hygiene requirements, such as food processing, our food-type drum magnets are engineered with a paramount focus on sanitation. The internal components are designed to prevent bacterial growth, featuring smooth, crevice-free surfaces that are easy to clean and sterilize. The entire body of these units is manufactured from high-grade stainless steel, ensuring durability, corrosion resistance, and compliance with strict sanitary standards.

Our food type drum magnets inside the body have a hygienic design against bacterial growth. The body is produced as completely stainless.

Conclusion

Closed magnetic drums represent a critical component in modern industrial processing, offering automated, highly efficient, and reliable separation of ferrous contaminants. By protecting valuable machinery, improving product quality, and ensuring compliance with industry standards, these systems deliver significant operational advantages and contribute to the overall success of manufacturing processes across a multitude of sectors.
