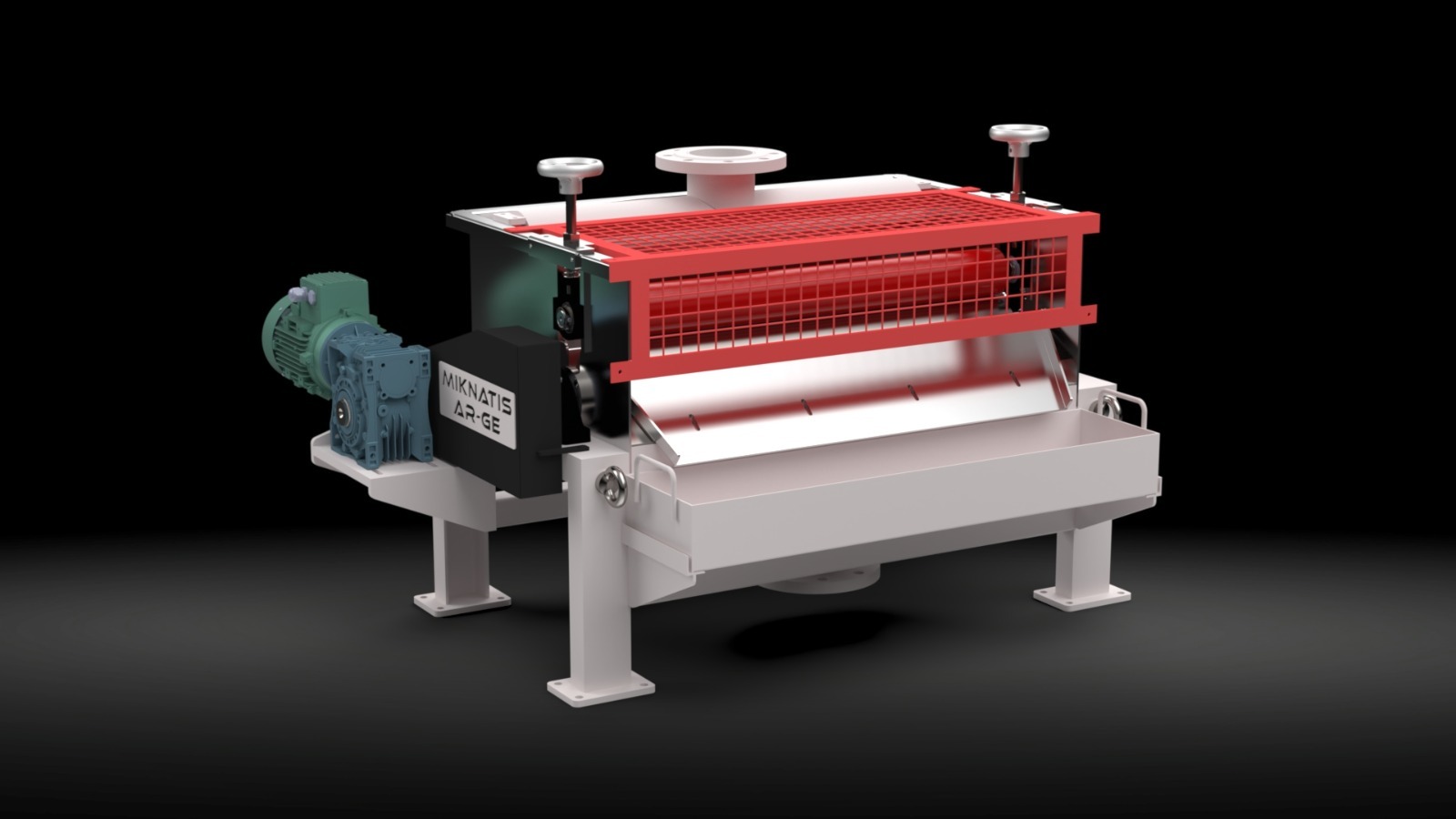

In modern industrial processes, the presence of unwanted metallic contaminants in various circulating liquids such as glaze, enamel, and especially coolants and oils, poses a significant challenge. These ferrous particles, often microscopic and generated during machining or grinding, can severely degrade product quality, shorten valuable tool life, and cause irreparable damage to expensive machinery. A robust and efficient solution is therefore imperative to maintain operational efficiency, ensure product integrity, and achieve cost-effectiveness. The Coolant Magnetic Cleaning Separator stands as a critical piece of equipment, meticulously engineered to precisely address this need by efficiently extracting such ferrous impurities from circulating process fluids.

The Indispensable Role of Coolant Magnetic Cleaning Separators in Industry

The Coolant Magnetic Cleaning Separator is specifically designed for environments where maintaining a pristine fluid environment is paramount for precision and longevity. It is widely utilized across a broad spectrum of industrial applications, particularly in demanding settings such as precision machining facilities, surface grinding machines, gear grinding machines, honing and lapping machines, milling and drilling machines, and other surface grinders. Furthermore, its efficacy extends to oil recovery machines and virtually any industrial application where a clean coolant or lubricating fluid is crucial for optimal performance and extended equipment life. By meticulously removing harmful ferrous contaminants, this separator provides an invaluable service to manufacturing operations.

By effectively removing ferrous contaminants, the Coolant Cleaning Magnetic Separator directly enables machine tools to operate with enhanced longevity and superior accuracy. This direct impact translates into substantially lower costs per unit produced, significant improvements in surface finishes on machined parts, and a notable reduction in scrap rates due to fewer defects. The core of this highly efficient system is its powerful magnetic drum, which houses high-strength permanent magnets. These magnets are typically manufactured from either advanced Neodymium (NdFeB) rare-earth alloys or durable Ferrite (Ceramic) materials, carefully chosen for their exceptional magnetic properties, resistance to demagnetization, and overall robustness in demanding industrial environments.

Advanced Magnetic Technology: Neodymium vs. Ferrite

The choice of magnetic material for the separator’s drum is a critical factor influencing its overall efficiency and suitability for specific applications. Neodymium (NdFeB) magnets are renowned for their exceptional strength and high magnetic flux density, making them ideal for capturing even the finest, weakly magnetic particles and ensuring superior fluid clarity. This is particularly beneficial in applications requiring ultra-high precision. Ferrite (Ceramic) magnets, while generally less powerful than Neodymium, offer excellent resistance to demagnetization, operate effectively in higher temperature ranges, and provide a more cost-effective solution for applications where larger or more abundant ferrous particles are the primary concern. Both types of magnets are hermetically sealed within a robust, non-corrosive drum, ensuring long-term performance, reliability, and minimal degradation in harsh industrial fluid environments.

Unveiling the Working Principle: How it Achieves Superior Cleanliness

Working Principle:

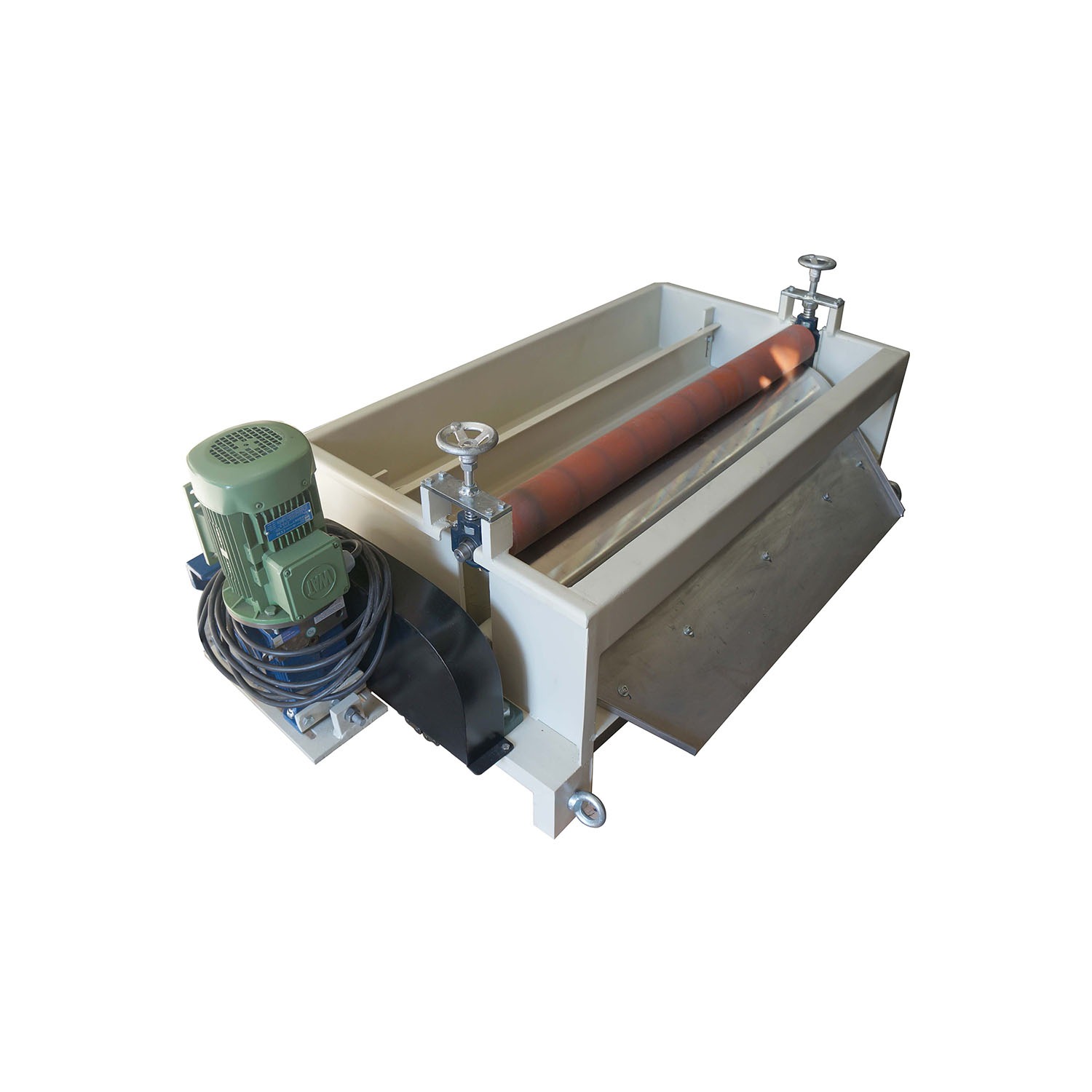

The operational efficiency of the magnetic cleaning separator is rooted in a straightforward yet highly effective physical principle: continuous magnetic separation. The contaminated coolant or process fluid is gravity-fed into the unit, flowing directly under a powerful, continuously rotating magnetic cylinder. As the liquid passes through the magnetic field, the intense, permanent magnetic field emanating from the Magnetic Drum (Roll) efficiently attracts, captures, and securely holds ferrous impurities suspended within the fluid. This powerful magnetic attraction ensures that even microscopic metallic fines, which are often the primary cause of abrasive wear and surface imperfections, are effectively trapped onto the drum’s surface.

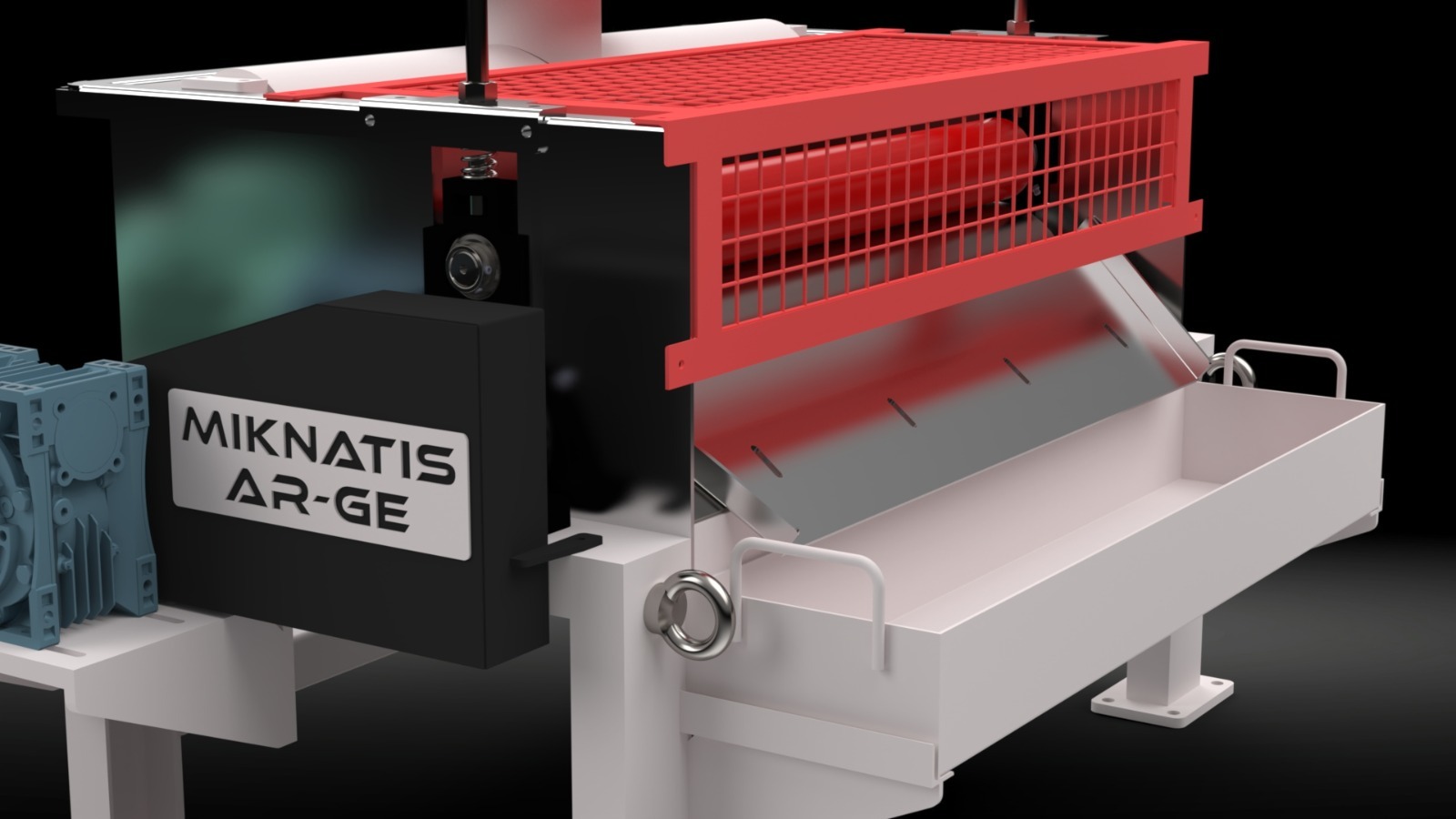

As the magnetic drum surface steadily rotates against the flow of the liquid, the ferrous particles, now firmly attached to its robust surface, are continuously carried upwards and out of the fluid stream. This continuous rotation is a key design feature, as it prevents the re-entrainment of contaminants back into the cleaned fluid. Once these particles are lifted clear of the liquid, a precisely positioned scraper blade comes into action. This robust blade effectively removes the accumulated chips, swarf, and other metal (Fe) impurities from the magnetic drum surface. In many advanced designs, this process is further aided by a printing roller which helps to compress the magnetic sludge, making it drier and easier to discharge. The now thoroughly cleaned coolant then flows back into the machine’s chamber, ready for reuse, while the separated ferrous particles are deposited onto strategically inclined scraper blades.

These inclined scraper blades are meticulously designed to facilitate the slow, gravitational movement of the accumulated Fe – iron chips and sludge towards a dedicated discharge chamber or collection bin. This methodical and continuous removal process ensures that the captured contaminants are effectively isolated and collected, preventing any possibility of re-entry into the clean coolant system. This automated, self-cleaning process ensures consistent fluid quality, significantly minimizes the need for manual intervention, and ultimately maximizes operational uptime for critical machinery.

Key Features and Advantages: Driving Efficiency and Savings

Features and Advantages:

• Cleaner coolant with longer service life: By continuously and effectively removing abrasive ferrous particles, the coolant remains pristine and uncontaminated, significantly extending its functional lifespan and drastically reducing the frequency and cost of fluid replacement.
• Extended tool life: The circulation of clean coolant dramatically reduces wear and tear on expensive cutting tools, drills, grinding wheels, and other consumables, leading to fewer tool changes, increased production efficiency, and substantial savings on tooling costs.
• The machine is protected: Eliminating abrasive metal fines from the coolant stream prevents premature wear and damage to critical machine components such as high-pressure pumps, precision seals, delicate bearings, and intricate guiding systems, thereby safeguarding your valuable machinery investment.
• Reduced machine downtime: Less contamination in the coolant translates directly into fewer machine breakdowns, reduced maintenance interventions, and fewer instances of blocked nozzles or filters, leading to higher operational availability and increased overall productivity.
• Less cost: The combined benefits of extended coolant life, significantly longer tool life, reduced machine maintenance, and improved product quality translate into substantial overall cost reductions for your industrial operations, enhancing profitability.
• Reduced pump wear: Pumps, which are often the first point of contact for contaminated fluid, experience significantly less abrasion and wear when coolant is consistently kept clean, thereby extending their operational life and reducing repair or replacement costs.
• Easy installation in limited space: Engineered for versatility and practicality, these separators often feature compact footprints and thoughtful designs, allowing for straightforward integration into existing machine setups or new installations without requiring extensive modifications or valuable floor space.
• It can be used on new or existing machines: Their adaptable and modular design makes them suitable for both integration into new equipment installations and for retrofitting onto older, existing machines, offering a flexible and cost-effective upgrade path for improved filtration.
• Available in different capacities, different types: A comprehensive range of models with varying flow rates, magnetic strengths, and physical dimensions ensures that there is a perfectly suitable magnetic separator for almost any industrial application and fluid volume requirement.
• There are almost no maintenance costs: Utilizing robust permanent magnets and durable construction materials, these units require minimal upkeep, primarily involving only the periodic removal of collected magnetic sludge, making them exceptionally economical and hassle-free to operate.

Tailored Solutions for Every Industrial Need

Our Coolant Magnetic Cleaning Separators are expertly engineered to meet the diverse and demanding requirements of various industrial applications, offering unparalleled flexibility in design, capacity, and magnetic strength. Whether your operation requires a compact unit designed for a single machine tool or a high-capacity, centralized system for a large-scale coolant filtration plant, we are committed to providing robust and efficient solutions optimized for maximum efficiency, superior performance, and long-term reliability.

Please contact us for Coolant Liquid Cleaning Magnetic Separator with different sizes, capacities and features.
