Understanding Magnetic Humps: Advanced Metal Contamination Control

Magnetic Humps, often referred to as plate magnets or hump magnets, are critical components in various industrial processes designed to ensure product purity and protect downstream equipment from ferrous metal contamination. Engineered for gravity flow lines, they effectively capture unwanted magnetic particles from a wide range of dry, free-flowing materials.

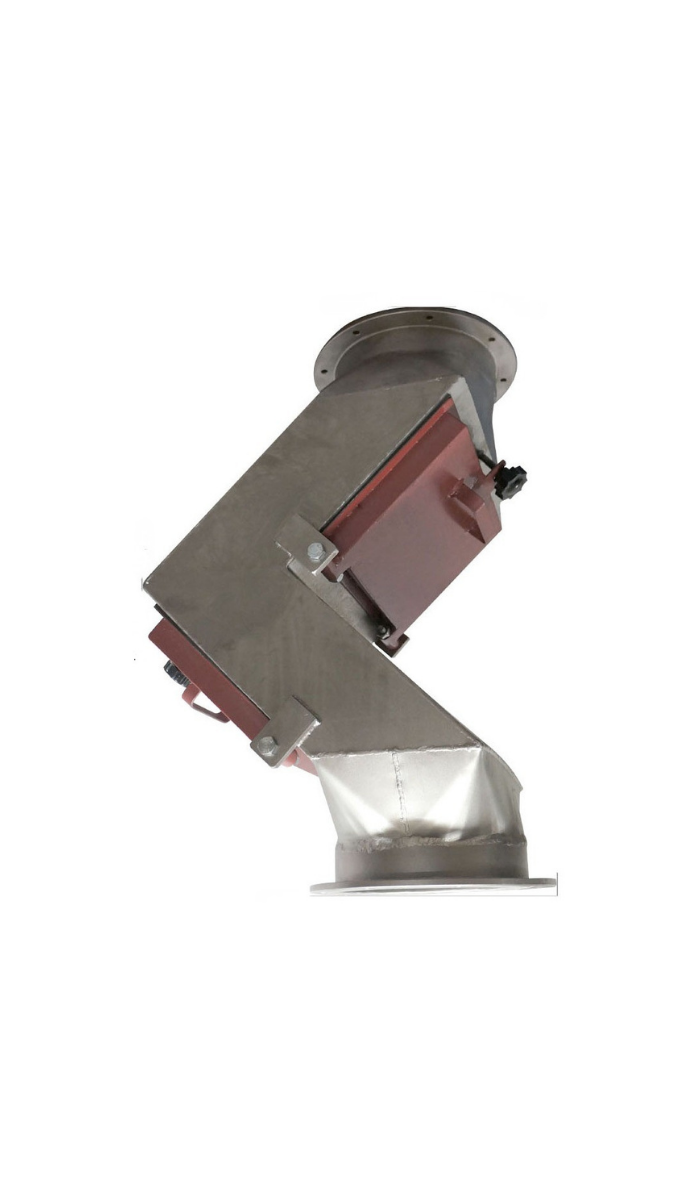

They are designed to clean metal wastes as they flow from the gutters in accordance with gravity, with the weight of grain, feed wood chips, sand, plastic, fiber, chemicals, textile products, cotton fiber etc. These robust separators are typically constructed from high-grade stainless steel (e.g., 304 or 316 for food-grade applications), ensuring durability, corrosion resistance, and compliance with hygiene standards in sensitive industries. Plate magnets can be hinged, latched, etc. for easy cleaning. It is designed in the form of a connected cover, facilitating straightforward installation and maintenance within existing production lines, often at angles that optimize material flow and magnetic capture.

Principle of Operation and Design Features

Effective Contaminant Removal

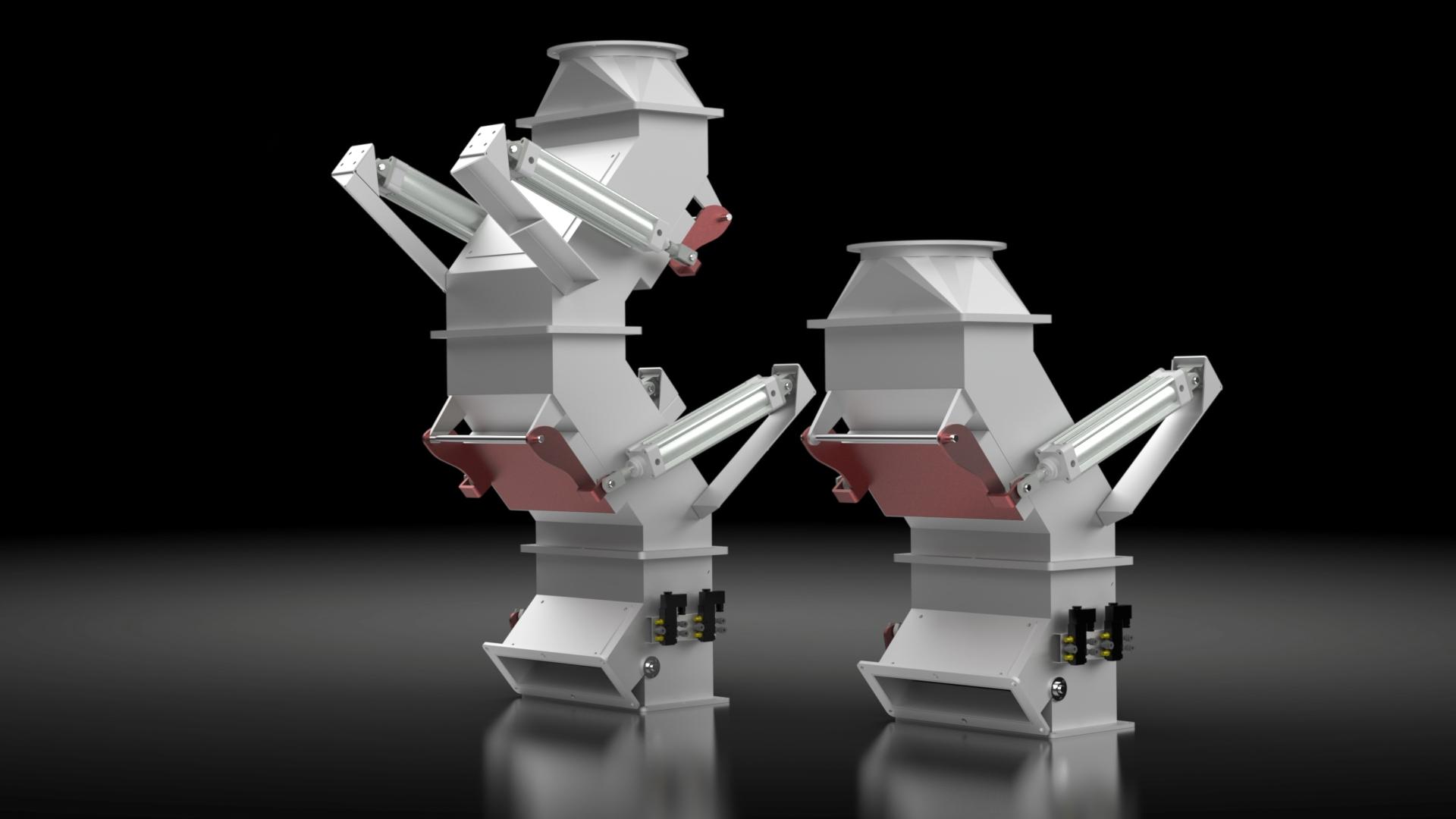

The core function of a magnetic hump relies on powerful permanent magnets, often high-strength Neodymium (NdFeB) or Ceramic (Ferrite) magnets, strategically positioned within the flow path. These magnets are housed within a durable casing, creating a powerful magnetic field that permeates the flowing product stream. As materials like grain, feed, wood chips, sand, plastic, fiber, chemicals, textile products, or cotton fiber flow over or around these magnetic plates, ferrous contaminants – ranging from tramp iron, bolts, nuts, and wires to fine iron dust and weakly magnetic stainless steel fragments – are drawn out of the product stream and securely held on the magnet face. This prevents costly damage to processing machinery such as grinders, pulverizers, extruders, and pelletizers, while also safeguarding the end-product quality and preventing product recalls.

Cleaning Mechanisms: Manual vs. Automatic

Cleaning is done manually as they are permanent magnets. For applications where simplicity and cost-effectiveness are priorities, manual cleaning involves unlatching the magnet assembly and physically wiping away the accumulated ferrous material. This method is straightforward, requires minimal infrastructure, and is suitable for operations with less frequent contamination or readily accessible installation points, allowing operators to visually inspect the captured contaminants.

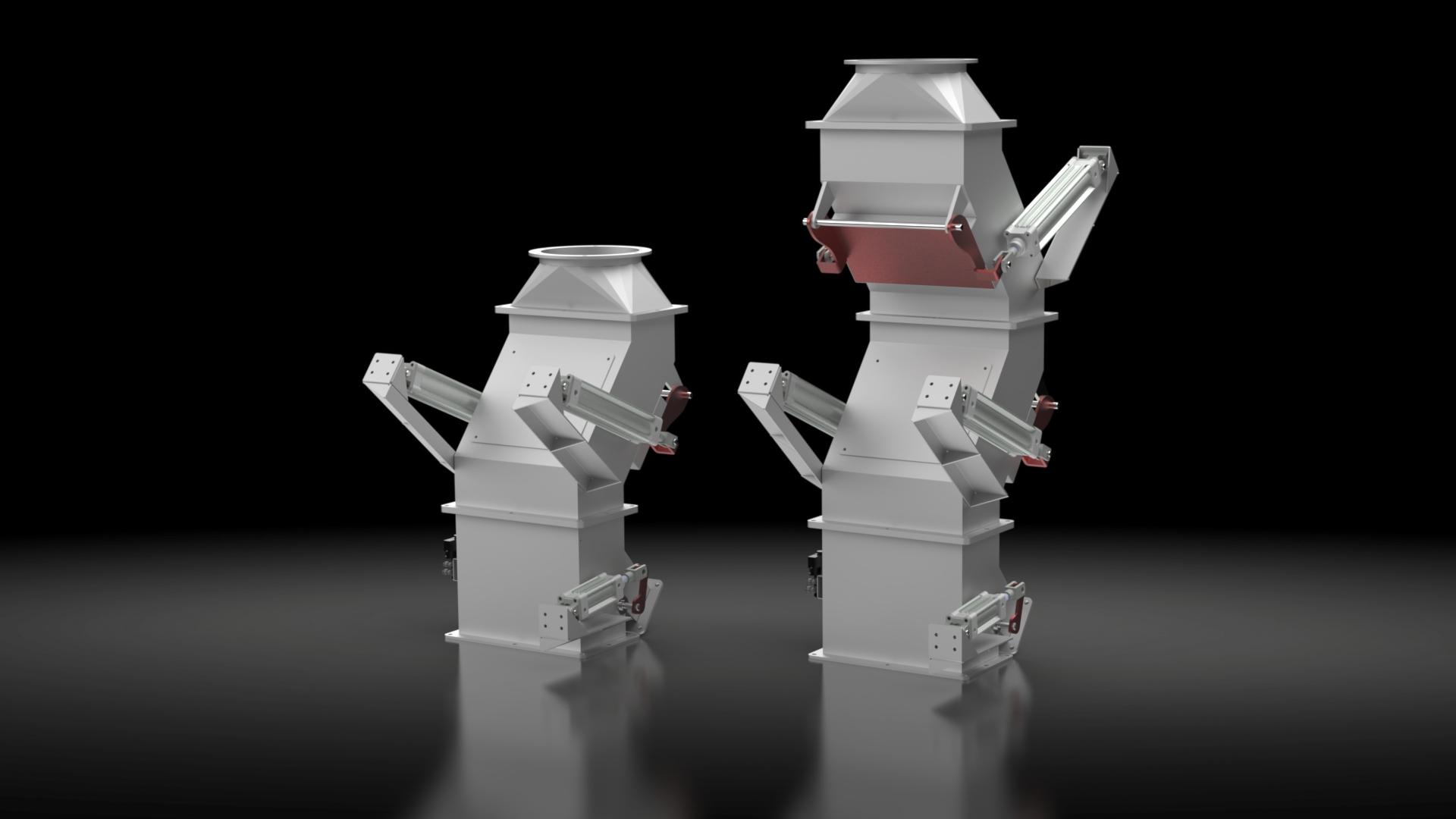

However, for more demanding environments, the cleaning of plate magnets can be designed as automatic cleaning with pneumatic release with the help of scraper cover. This advanced option significantly reduces downtime and labor, enhancing operational efficiency and safety. The pneumatic system automatically retracts the magnet assembly from the housing, allowing a robust scraper mechanism to dislodge the captured contaminants into a collection bin, all without direct human intervention or exposure to the product stream. This automated process can be initiated by a timer, level sensor, or manually from a control panel.

Advanced Applications and Control

Optimized for Challenging Environments

Automatic cleaning makes the plate type magnetic separator suitable for situations where it is difficult or inaccessible to operate and clean. This is particularly advantageous in processes with continuous operation, high throughput, or hazardous materials (e.g., dusty, explosive, or toxic environments). They are very suitable for cleaning powders and iron powders in granules in free-fall lines or pipes, and for situations where it is difficult or inaccessible to operate the magnetic separator. Their fully enclosed, sealed design ensures minimal product leakage and robust performance even in dusty, moist, or high-temperature conditions, maintaining process integrity.

For seamless integration into modern industrial facilities, connectivity is key. With the junction box, it is possible to connect and control the magnet via the central control room. This allows for remote monitoring of operational status, scheduling of automated cleaning cycles, real-time fault detection, and integration into a broader plant automation system (e.g., SCADA or DCS). A local control box with PLC (Programmable Logic Controller) is optional, offering localized control, advanced programming capabilities for tailored cleaning schedules based on specific production batches or contamination levels, and comprehensive diagnostic feedback for predictive maintenance.

Impact Type Magnetic Plates for Enhanced Flow

Impact type magnetic plates are one of the most preferred magnetic separators in lines with product clogging since they are independent of people with pneumatic control and self-cleaning at regular intervals. Their unique design often features an angled or stepped configuration, or a heavy-duty deflector plate, that ensures product flow is maintained even with sticky, bridging, or high-volume materials, minimizing material hang-up points while still providing an effective magnetic field for contaminant capture. The automated, timed cleaning cycles of these impact humps prevent material buildup on the magnet face, ensuring consistent magnetic performance and uninterrupted product flow, which is crucial for maintaining production efficiency and product quality in challenging applications such as bulk solids handling, recycling, or mineral processing.
