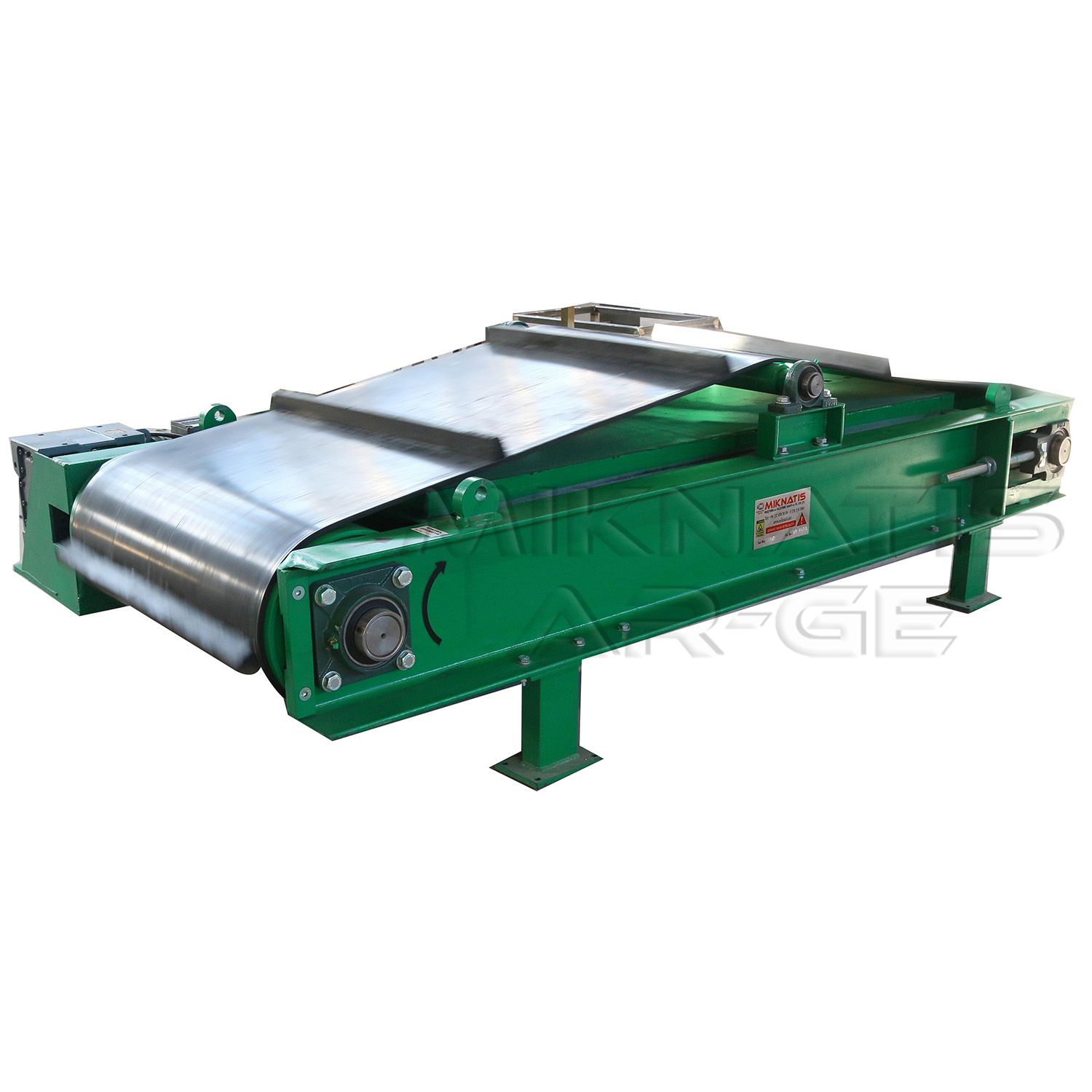

The Plate Magnet is placed on the conveyor belt. A moving continuous band surrounds the magnet plate. The ferrous material is magnetised by the magnet and held on the belt. As the belt moves away from the magnetic field, ferrous metals collect and fall off the infeed conveyor or fall into the chute. It is designed for a maximum suspension height of approximately 10 inches (300 mm) on belts less than 1000 mm wide. If wider tapes and effective magnetising distance are requested, a larger suspended permanent plate magnet may be required.

Suspended type Plate Magnetic separators have proven to be the most effective method for pulling unwanted iron from the material carried on fast moving conveyors. It is ideal for separation applications on wet or dry, fine or coarse materials in large or small tonnages. Auto-Cleaning Suspended Magnetic Plates safely and securely separate waste iron, protecting costly processing machinery and assuring product purity.

Suspended Magnetic Plate is the simplest and most cost-effective equipment for separating ferromagnetic particles from materials conveyed on belt conveyor. Automatic Cleaning Suspended Magnetic Plates are suitable for materials with denser magnetic metal particle content.

It provides a greater magnetic coverage needed to separate coarse iron particles in dense metal and difficult to clean areas, and requires less space than an electromagnet. Since it is permanent magnet, it does not require energy and maintenance. The conveyor part, which is only used for movable cleaning, requires maintenance at certain intervals.

The operating advantages are many; the possibility of shutdown due to power failure is eliminated. Since it is permanent magnet, its power does not decrease over time, it does not change. (Except for severe mechanical impact, disintegration, and abrasion of poles) The system always operates at the highest efficiency.

They are made of Ceramic-Ferrite or Neodymium magnets. They are made of stainless and impermeable NdFeB magnets, especially for the food industry. They can be manufactured to be hung with a chain or mounted with a footed chassis, according to demand.

Automatic Cleaning Hanger Type Magnetic Plate features:

• Extraction of free iron from various materials,
• Ideal for attachment to mobile crushing, screening and shredding machines,
• Removal of free nails and screws from waste wood,
• Protection of vital flow equipment in mines and quarries
• It can be made in custom sizes to fit conveyors with a width of (400-2000 mm) as standard.
• The self-cleaning feature supplied with the unit allows the accumulated iron to be automatically separated and thrown out of the band separate water).
• Low operating cost, No electrical maintenance on Magnet; uninterrupted magnetic shielding, Simple installation,
• Permanent magnet does not require power, Strong magnetic field (permanent magnet plates effective at 35-40 cms)
