In the highly demanding world of ceramic and porcelain manufacturing, achieving impeccable product quality hinges significantly on the purity of raw materials, particularly glazes and slips. Microscopic impurities, often metallic in nature, can lead to costly defects during the firing process, compromising aesthetic appeal and structural integrity. Addressing this critical challenge, the Mobile Electromagnetic Filter emerges as a cutting-edge solution, offering unparalleled purification capabilities right where they are needed most on the production floor.

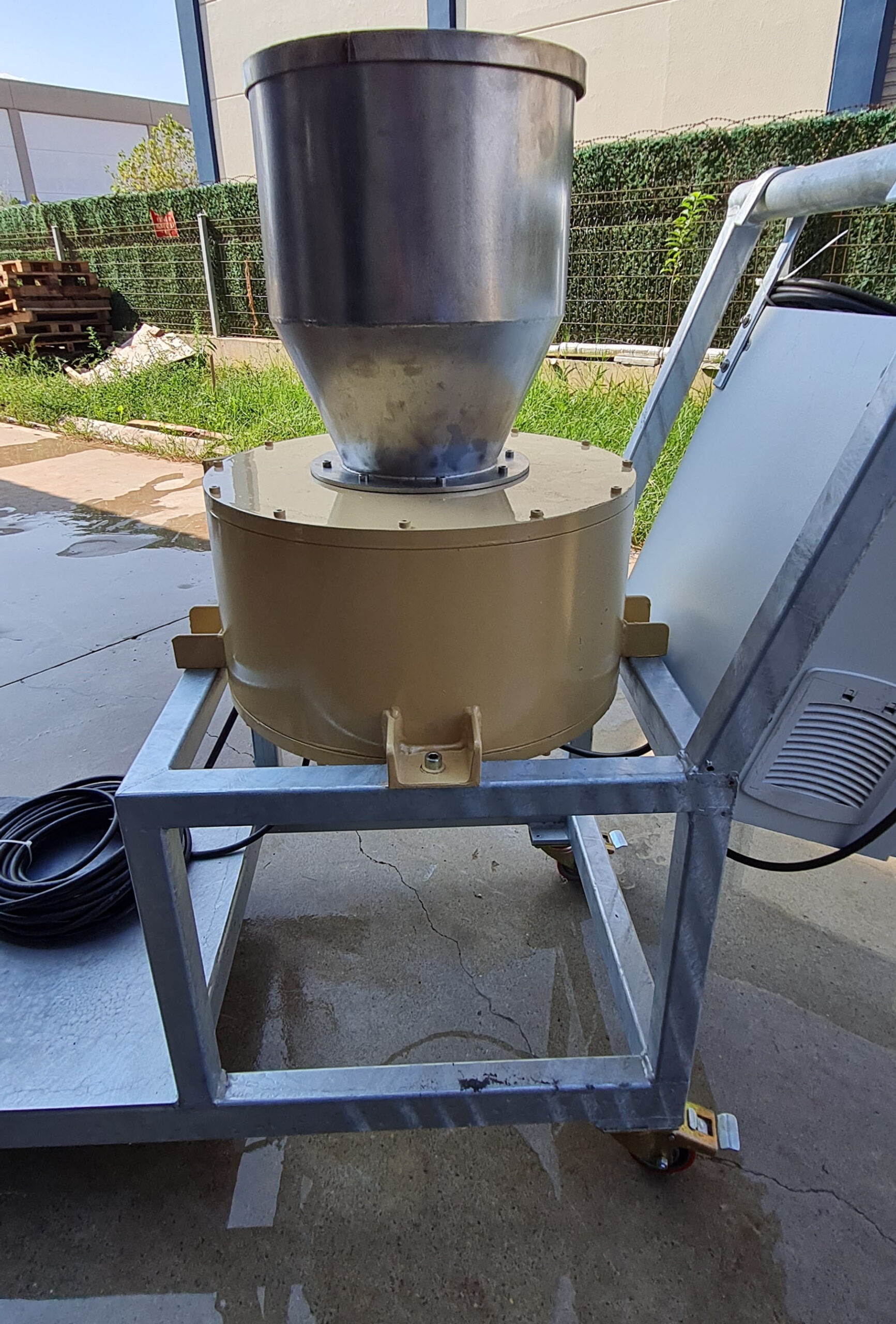

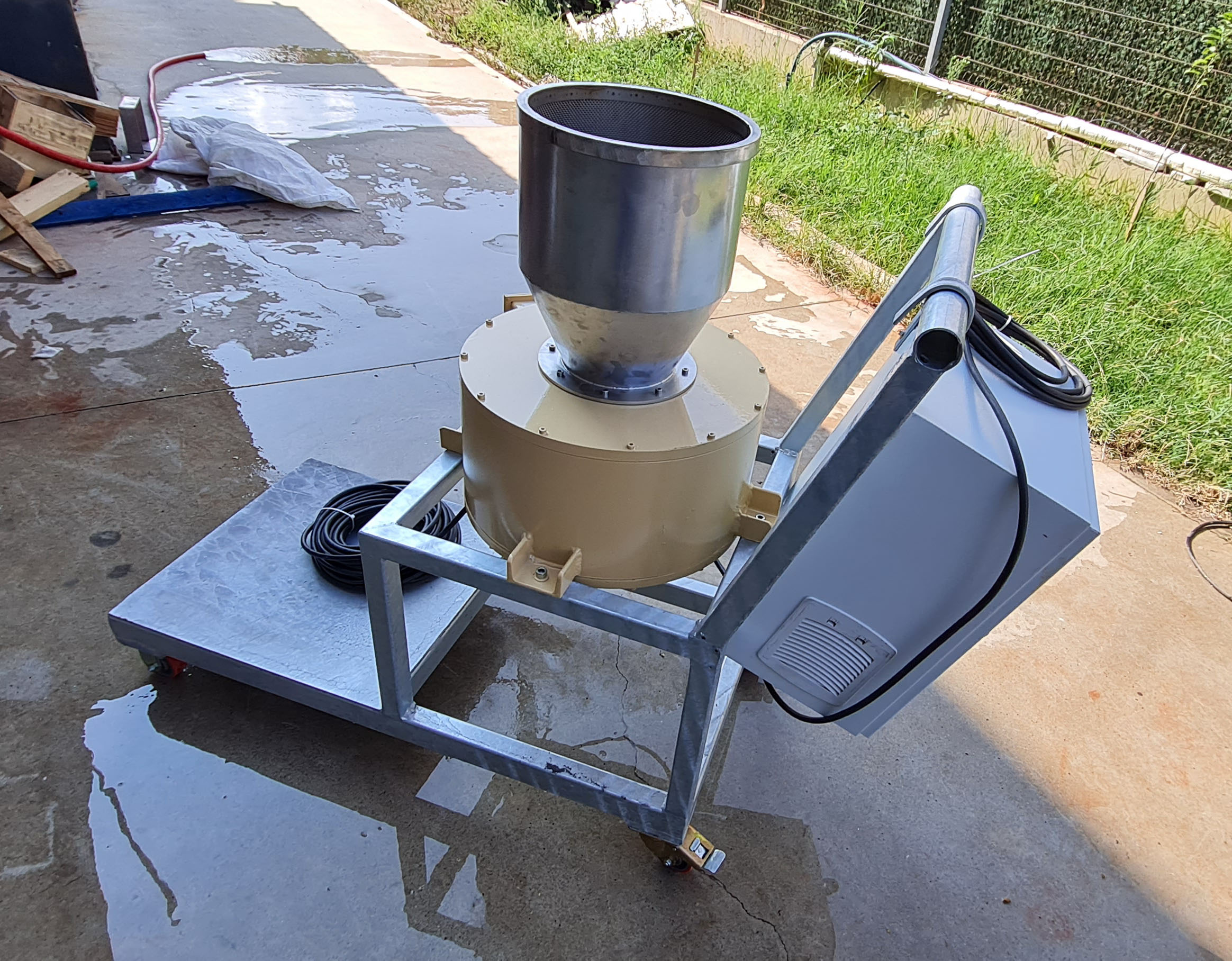

High-Efficiency Mobile Electromagnetic Filter for Industrial Glaze Purification

The Electromagnetic Filter stands as a pinnacle of engineering for the ceramic and porcelain industry, specifically designed to address the rigorous demands of glaze and slip purification. This mobile unit features a completely original, high-grade special copper winding architecture that ensures a consistent and powerful magnetic gradient. This sophisticated winding, crafted from oxygen-free copper, minimizes electrical resistance and maximizes magnetic flux density, creating an intensely uniform magnetic field across the filtration matrix. Despite its heavy-duty performance and robust construction, the system is engineered for maximum electrical efficiency, maintaining a remarkably low and economical energy consumption of only 600 Watts. This exceptional power-to-performance ratio is achieved through optimized coil design and advanced power management, ensuring that the Electromagnetic Filter represents an excellent quality investment for manufacturers seeking to optimize operational costs while achieving superior product purity and reducing their carbon footprint.

The core principle behind this system’s effectiveness lies in its ability to generate a powerful magnetic field that permeates the liquid glaze or slip as it flows through. This field meticulously captures even the finest ferromagnetic particles (like iron oxides) and paramagnetic contaminants (such as titanium dioxide or chromium oxides in certain states) that are typically too small or non-magnetic enough for conventional separation methods. This precise removal of impurities ensures a final product free from visual defects and structural weaknesses, which can manifest as black dots, pinholes, or discoloration after firing.

Technical Integration and Glaze Recovery

One of the most versatile features of this mobile system is the ability to integrate a specialized diaphragm pump at the front of the unit. This robust, self-priming pump is specifically chosen for its ability to handle abrasive and viscous slurries without degradation, ensuring a consistent and controlled flow rate through the filter. Its seamless integration, typically via standard industrial plumbing connections and synchronized electrical controls, transforms the Electromagnetic Filter into a high-capacity recovery station. This setup is particularly invaluable for processing “back tanks” or waste glaze reservoirs where iron content has become a critical problem due to contamination from grinding media wear, kiln furniture, or raw material impurities. By reclaiming these previously unusable materials, manufacturers can significantly reduce raw material waste, cut down on disposal costs, and foster a more sustainable and economically viable production cycle.

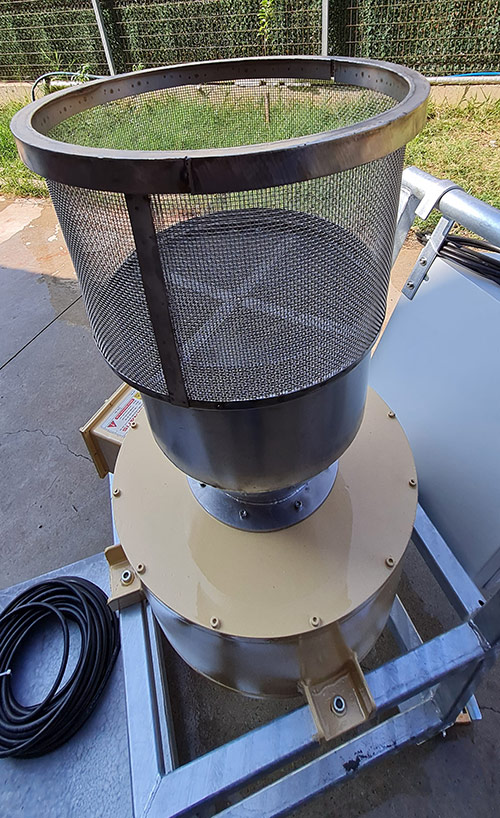

By passing the liquid through the high-intensity magnetic matrix, which consists of finely wound stainless steel or specialized alloy filter elements, the system extracts fine ferromagnetic particles and paramagnetic contaminants down to sub-micron levels. The intricate design of the matrix creates a tortuous path for the fluid, maximizing the exposure time to the magnetic field and ensuring a high capture efficiency even for weakly magnetic substances. This sophisticated process saves the final product from unwanted impurities that typically lead to costly quality errors—such as black dots, surface discolouration, and pin holes—during the high-temperature firing process. The matrix part, which serves as the heart of the magnetic separation, is ingeniously designed for rapid maintenance; it can be easily disassembled using quick-release mechanisms, efficiently cleaned of captured iron particles through a simple rinse or demagnetization process, and re-integrated into the workflow with minimal downtime, often in less than 15 minutes. This modular design significantly enhances operational continuity and reduces labor costs associated with cleaning.

Operational Capacity and Cooling Engineering

The Electromagnetic Filter is built for industrial-scale throughput, designed to meet the demands of continuous production. During standard operation, it can efficiently recirculate and purify up to 5 tons of glaze per hour, providing a rapid and effective solution for large-batch purification and high-volume production lines. This impressive capacity is a result of the optimized balance between magnetic field strength, matrix flow characteristics, and pump efficiency, ensuring consistent purification without hindering production speed. The control dashboard is equipped with an integrated warning system, featuring real-time sensors that monitor critical operational parameters such as coil temperature, magnetic field strength, fluid pressure, and flow rate during long-term continuous operation. This advanced monitoring ensures the safety of the internal copper windings and electrical components, preventing overheating or overload and extending the lifespan of the unit while maintaining consistent performance and alerting operators to any anomalies.

From a thermal engineering perspective, the unit utilizes an advanced natural cycle cooling system. Unlike larger, more power-intensive units that often require complex water-cooling jackets or external forced-air fans, this 600-Watt system dissipates heat effectively and passively through its optimized structural design, leveraging principles of natural convection and radiation. This eliminates the need for additional cooling infrastructure, water consumption, or high-maintenance components, significantly reducing operational complexity, environmental impact, and running costs. Furthermore, while the standard mobile model is designed for straightforward manual cleaning, we offer custom engineering solutions where the Electromagnetic Filter can be manufactured with fully automatic cleaning cycles. These automated systems can be triggered based on specific customer requests, such as timed intervals or detected levels of contamination build-up, using mechanisms like automated flushing or backwash cycles, thereby maximizing uptime and further minimizing manual intervention, especially beneficial for highly contaminated feed materials or continuous production environments requiring minimal human oversight.

Conclusion: Driving Purity and Efficiency in Ceramic Production

The Mobile Electromagnetic Filter stands as a testament to advanced engineering, delivering not just purification but a comprehensive solution for operational efficiency and sustainability within the ceramic and porcelain industries. Its high-efficiency magnetic separation, coupled with low energy consumption and robust, maintenance-friendly design, makes it an indispensable asset. By significantly reducing material waste through effective glaze recovery, improving final product quality by eliminating critical defects, and lowering overall operational costs, this filter empowers manufacturers to meet stringent quality standards while contributing to more eco-friendly and sustainable production processes. Whether for routine purification or critical glaze recovery, this mobile unit offers a flexible, powerful, and economically sound investment for achieving excellence in every batch and maintaining a competitive edge in the market.
